Rocking Response of Seismically-Isolated Rigid Blocks Under Simple Acceleration Pulses and Earthquake Excitations

2.1. Model Description

The adopted model consists of a rectangular-prismatic rigid block of mass m and centroid mass-moment of inertia I_C , standing free on a seismically-isolated rigid base of mass m_b (Fig. (1a)). The block of height H = 2h and width B = 2b is assumed to rotate about the corners O and O^'. A measure of the size of the block is given by the half-diagonal of the rectangle, while a measure of its slenderness is given by the height-to-width ratio λ = h/b or equivalently by the angle α = tan^-1 (b/h). A measure of the dynamic characteristics of the block, albeit in an approximate sense since the natural frequency is amplitude-dependent, is given by the size parameter [1]. Two isolation-system models are utilized in the analysis: (a) a linear viscoelastic model, defined by parameters k_b and c_b (presented in Section 2.2.1), and (b) a bilinear hysteretic model (typified by the friction-pendulum type), defined by parameters µ_b and R_b (presented in Section 2.2.2).

Assuming no sliding of the block against the rigid base, when subjected to ground excitation the system can exhibit two possible oscillation patterns: (a) full-contact, during which the block/base system oscillates as one unit horizontally with displacement u(t)— 1DOF response (Fig. (1b)), and (b) rocking, during which the rigid block pivots on its edges with rotation angle θ(t) as the supporting base translates horizontally with u(t)— 2DOF response (Fig. (1c)). The rotation angle of the block is denoted by θ(t), positive in the clockwise sense, and the horizontal displacement of the base with respect to the foundation is denoted by u(t).

2.2. Equations of Motion

When subjected to horizontal ground acceleration , the supporting base will oscillate in the horizontal direction with a displacement u(t) relative to the foundation. The rigid block will be set into rocking on top of the moving base when the overturning moment due to external loads exceeds the resisting moment due to gravity, yielding the following condition

(1)

If the total acceleration of the base is positive, then rocking of the block takes place about corner O^', or else if it is negative rocking takes place about corner O.

The governing equations for each regime of motion are derived next through a large-displacement formulation (not restricted to slender blocks) by means of the Lagrange method, for two seismic-isolation models. The problem description will be presented in terms of the geometric parameters of the block (b, h), the inertia parameters of the system (m, m_b), the constitutive parameters of the isolation system (k_b, c_b or µ_b, R_b), and the horizontal component of ground acceleration .

2.2.1. Linear Model for Isolation System

Consider first the block isolated with a linear isolation system composed of a linear spring with stiffness k_b and a linear viscous damper with coefficient c_b, by interposing a rigid base of mass m_b. The behavior of such a linear-viscoelastic model in terms of the lateral force developed in the isolation system is described by:

(2)

The equation governing the response in the full-contact regime, in which the block remains in full contact with the horizontally moving base, is given by:

(3)

Equation (3) is the classical second-order differential equation governing the response of a single-degree-of-freedom system of mass (m+m_b) to ground excitation. The (isolation) system period T_b and damping ratio ξ_b are given by the following expressions, respectively:

(4)

(5)

In the rocking regime, the system possesses two degrees of freedom. Using as generalized coordinates q₁ ≡ u, the horizontal translation of the base relative to the ground, and q₂ ≡ θ, the rotation angle of the block about a base corner, Lagrange’s equations take the form:

(6)

in which T denotes the kinetic energy of the system, V the potential energy of the system, and Q_i the generalized non-conservative forces.

For the case when the block rotates about corner O (θ > 0), the kinetic energy of the system is obtained as:

(7)

in which for a rectangular block.

The first term in Eq. (7) is associated with the horizontal translation of the base, and the second and third terms are associated with the general planar motion of the block (composed of a pure-translation component and a pure-rotation component, both with reference to the mass center of the block).

The potential energy of the system is obtained as:

(8)

The generalized forces Q_i are derived through the virtual work of the non-conservative forces as:

(9)

Substituting the appropriate derivatives of the kinetic and potential energy of the system (Eqs. (7) and (8)), together with the expressions for the non-conservative forces (Eq. (9)), into Lagrange’s equations (Eq. (6)) gives the equations of motion for rotation about O (θ > 0). The equations of motion for rotation about O^' (θ < 0) can be derived in a similar manner. Combining the equations for rotation about O and O^', leads to the following compact set of equations governing the rocking regime of the block over of the translating base:

(10)

(11)

where sgnθ denotes the signum function in θ.

Evidently, the mutually-coupled equations governing the rocking regime are highly nonlinear and not amenable to closed-form solution even for the simplest form of ground excitation. Note that Eqs. (10) and (11) hold only in the absence of impact (θ ≠ 0). At that instant, both corner points O and O^' are in contact with the base, rendering the above formulation invalid. The impact problem is addressed separately in Section 2.3.

2.2.2. Nonlinear Model for Isolation System

Consider the bilinear hysteretic model to represent the mechanical behavior of friction-pendulum-type isolation system, described by:

(12)

where R_b is the radius of curvature and µ_b is the coefficient of friction of the friction-pendulum (FP) isolators; and Z is a dimensionless variable describing the rigid-plastic behavior being governed by the following differential equation

(13)

in which Y is the yield displacement, and β, γ are dimensionless parameters that control the shape of the hysteresis loop, with assigned values: β = 0.1, γ = 0.9, Υ = 0.3mm [18].

In Eq. (12), the coefficients of u and Z represent the second slope of the bilinear model and the strength of the system, respectively.

The equation governing the response in the full-contact regime is readily obtained as:

(14)

In the rocking regime, for the case when the block rotates about corner O (θ > 0), the kinetic energy of the system is again given by Eq. (7), while the potential energy and the generalized forces of the system are derived respectively as:

(15)

(16)

Substituting the expressions for the kinetic energy, the potential energy, and the non-conservative forces of the system into Lagrange’s equations yields the governing equations of motion for rotation about O (θ > 0). Analogous procedure can be followed for deriving the governing equations of motion for rotation about O^' (θ < 0). A combined set of equations governing rocking of the block about O and O' on top of the moving base (valid for θ ≠ 0) takes the form

(17)

(18)

where sgn θ denotes the signum function in θ.

2.3. Impact Model

A rigorous mathematical formulation of the impact problem is presented in this paper, based on the study originally published by Roussis et al. [15]. To the authors’ best knowledge, this model was the first to treat correctly from the theoretical point of view this important aspect of the system dynamic response.

The dynamic response of the system is strongly affected by the occurrence of impact of the rocking block on the horizontally-moving base. In fact, impact affects the system response on many different levels. On one level, it renders the problem highly nonlinear (aside from the nonlinear nature of the equations themselves) by virtue of the discontinuity introduced in the response (i.e. the governing equations of motion cease to be valid at θ = 0). As a result, impact causes the system to switch from one oscillation pattern to another (potentially modifying the degrees of freedom), each one governed by a different set of differential equations. This in turn entails that the integration of equations of motion governing the post-impact response must account for the ensuing instantaneous change of the system velocity regime. In this regard, the dynamic response is critically influenced by impact, in that impact contributes (exclusively) to the energy dissipation in the system, manifested through the reduction of the post-impact velocities.

Therefore, the critical role of impact in the dynamics of the system necessitates a rigorous formulation of the impact problem. In this paper, a model governing impact is derived from first principles using classical impact theory. According to the principle of impulse and momentum, the duration of impact is assumed short and the impulsive forces are assumed large relative to other forces in the system. Changes in position and orientation are neglected, and changes in velocity are considered instantaneous. Moreover, this model assumes point-impact, perfectly inelastic impact (i.e. zero coefficient of restitution), impulses acting only at the impacting corner (i.e. impulses at the rotating corner are small compared to those at the impacting corner and are neglected), and sufficient friction to prevent sliding of the block during impact.

Based on the assumption of perfectly inelastic impact, the block can exhibit two possible response mechanisms following impact: (a) rocking about the impacting corner, when the block re-uplifts (no bouncing), and (b) pure translation in full-contact with the base, when the block’s rocking motion ceases after impact. The formulation of impact is divided into three phases: pre-impact, impact, and post-impact, as illustrated schematically in Fig. (2). In the following, a superscript “-” refers to a pre-impact quantity and a superscript “+” to a post-impact quantity.

2.3.1. Rocking Persists after Impact

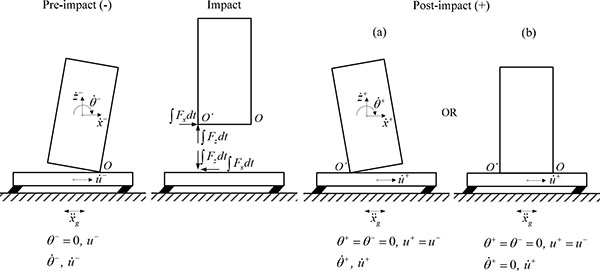

Consider the instant at which the block hits upon the translating base from rocking about O and re-uplifts about the impacting corner, O^' (Fig. (2a)). As mentioned before, impact is accompanied by an instantaneous change in velocities, with the system displacements being unchanged. Therefore, the analysis of impact is reduced to calculating the initial conditions for the post-impact motion, and , given the position and the pre-impact velocities, and .

Considering the block during impact, the application of the principle of linear impulse and momentum in the x and z direction gives the following equations:

(19)

(20)

in which ∫F_x dt and ∫F_z dt are the horizontal and vertical impulses (assumed to act at O'); , , and are the absolute pre- and post-impact horizontal and vertical velocities of the mass center of the block, respectively, expressed in terms of their pre- and post-impact relative counterparts , the relative-to-ground velocity of base , and the ground velocity .

In addition, the principle of angular impulse and momentum dictates that:

(21)

In Eqs. (19) and (20), the pre- and post-impact horizontal and vertical components of the relative translational velocity of the mass center can be expressed in terms of the angular velocity of the block as:

(22)

Substituting Eqs. (22) into Eqs. (19)-(20) yields:

(23)

(24)

Equations (21), (23), and (24) constitute a set of three equations in four unknowns . Equivalently, these equations can be combined in one equation (by eliminating the two impulses) in two unknowns yielding:

(25)

in which for rectangular block the centroid mass moment of inertia was taken as .

One additional equation is therefore required to uniquely determine the post-impact velocities and . By considering the system in its entirety during impact, it can be stated that the horizontal impulse on the system is zero, resulting in the conservation of the system’s linear momentum in the horizontal direction. That is,:

(26)

Alternatively, instead of considering the conservation of linear momentum (in the horizontal direction) of the entire system, one can apply the principle of linear impulse and momentum (in the horizontal direction) of the base alone, reaching at the same result (Eq. (26)).

Combining Eqs. (25) and (26) gives the post-impact velocities of the system (i.e. the angular velocity of the block and the translational velocity of the supporting base) as:

(27)

(28)

in which λ = h/b is the slenderness ratio and ρ = m/m_b is the mass ratio.

The coefficient of “angular restitution” ε in Eq. (27), associated with the reduction of the post-impact angular velocity of the block, is defined by:

(29)

and the coefficient of “linear restitution” β₁ in Eq. (28), associated with the reduction of the post-impact linear velocity of the rigid base, is defined by:

(30)

Equations (27) and (28) give the system velocities immediately after impact from rocking about O (realized when . Identical expressions are derived for the case of impact from rocking about O^' (realized when .

It is worth noting that the coefficient of restitution e as defined in classical impact theory, relates pre- to post-impact translational velocities normal to the impact surface , and hence it must not be confused (as often encountered in the literature) with the coefficient of “angular restitution” ε defined in Eq. (29), which relates the pre- to post-impact angular velocities of the body . In the derivation presented herein, the coefficient of restitution e enters in the expression which relates pre- to post-impact vertical relative velocities of the impacting corner (O'). The assumption of perfectly inelastic impact is then justified by considering e = 0.

Equation (29) reveals that the coefficient of angular restitution ε depends both on the slenderness ratio λ and the mass ratio ρ. An upper bound for the coefficient of angular restitution is obtained by taking the limit as the slenderness ratio λ approaches infinity:

(31)

The value ε = 1, implying preservation of the magnitude of the angular velocity after impact, is associated with an energy-lossless impact.

For the assumption of no-bouncing to be satisfied, the coefficient of angular restitution ε should have a positive value. In such a case, the angular velocity of the block will maintain sign upon impact, implying switching pole of rotation from one corner to the other. This requires that:

(32)

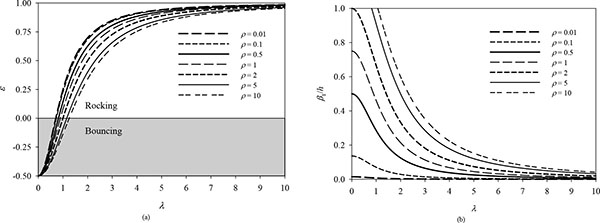

The variation of the coefficient of restitution ε with the slenderness ratio λ is shown in Fig. (3a) for different values of the mass ratio ρ. The strong effect of λ on the coefficient of angular restitution, and hence on the energy dissipated during impact, is evident from this figure. This effect is more pronounced in the lower λ-range (stocky blocks). Similarly, the dependency of coefficient ε on the mass ratio ρ is seen to be weak for very slender blocks, practically diminishing for λ > 8.

The coefficient β₁ in Equation (30), which is associated with the reduction of the post-impact linear velocity of the rigid base, depends not only on the parameters λ and ρ, but also on the absolute size of the block (in terms of its height). The normalized coefficient is plotted against the slenderness ratio λ for different values of the mass ratio ρ in Fig. (3b). Observe that the value of the coefficient decays rapidly with the slenderness ratio λ. As follows from the comparison of Figs. (3a and 3b), the influence of the mass ratio ρ on the coefficient is much greater than that on the coefficient ε.

Equation (28) elucidates the character of base-block dynamic interaction realized upon impact. In effect, the response of the “structure” (rocking block) modifies the input motion of the “foundation” (translating base). This inherent response feature stands in contrast to the dynamic behavior of the Housner-type model, in which the foundation mass is infinite. This interaction ceases to exist when coefficient β₁ becomes zero, which by virtue of Eq. (30) occurs when λ → ∞ or ρ → 0. That is to say, the horizontal velocity of base will remain practically unchanged upon impact either in the case of extremely slender block (independently of the block size and value of the mass ratio) or in the case of extremely small block mass relative to the base mass (independently of the block size and slenderness).

2.3.2. Rocking Ceases after Impact

When rocking of the block on top of the translating base ceases, the system will enter the full-contact regime (Fig. (2b)). In this case, the analysis of impact is reduced to calculating the post-impact translational velocity of the system, , given the position and the pre-impact velocities, and

By considering the system as a whole during impact, it can be stated that the horizontal impulse on the system is zero, resulting in the conservation of the system’s linear momentum in the horizontal direction. That is,:

(33)

which upon rearranging terms becomes:

(34)

in which coefficient β₂ is defined by:

(35)

3.1. Response to Simple Base-Acceleration Pulses

The response of the system is investigated under simple half- and full-cycle horizontal acceleration pulses. In particular, considered in the analysis are a half-cycle rectangular pulse, a half-cycle sinusoidal pulse, and a full-cycle sinusoidal pulse, characterized by amplitude A_g0 and half-cycle duration t_d (corresponding to frequency ), expressed mathematically as follows:

(36)

(37)

(38)

The stability of the isolated block is examined in terms of the minimum amplitude of base acceleration required to overturn the block, by considering the influence of excitation characteristics, the geometric parameters of the block, the inertia parameters of the base/block system, and the constitutive parameters of the isolation system.

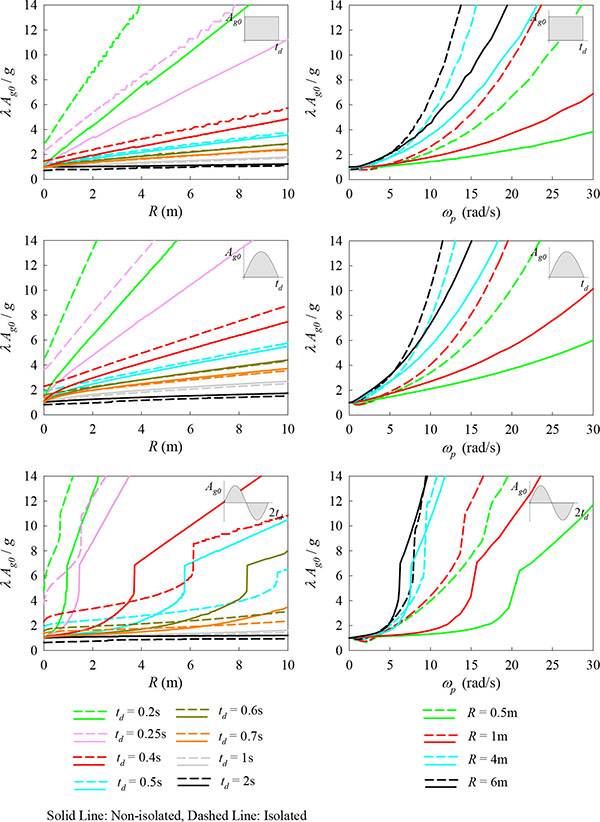

Fig. (4) plots the normalized minimum overturning base acceleration as a function of block size R for different values of t_d (left), and as a function of the excitation frequency ω_p for different values of R (right) for the simple acceleration pulses used in the analysis. As demonstrated from the left-half of Fig. (4), for the one-sided (rectangular and half-sine) pulses, the isolation has a positive effect on the stability of the block for t_d < 0.5s or equivalently excitation period T_p < 1s. For the two-sided (full-sine) pulse, this holds true for short-period pulses with t_d < 0.25s (T_p < 0.5s), while the effectiveness of isolation in the range 0.25<t_d<0.6s (0.5<T_p<1.2s) is conditional on the size of the block R . That is, the isolation ceases to improve the stability of the block when subjected to such intermediate-period full-sine pulses with increasing block size. Nevertheless, the range of R-values for which the isolation is effective increases as the pulse duration increases. However, it should be noted that, regardless of pulse type, seismic isolation is practically not beneficial (with respect to the overturning potential of the block) for long-period excitations (i.e. T_p > 1s for half-cycle pulses and T_p > 1.2s for full-sine pulses). With reference to the right-half of Fig. (4), the use of isolation results in enhanced behavior as the block size decreases, unless the system is subjected to long-period acceleration pulses.

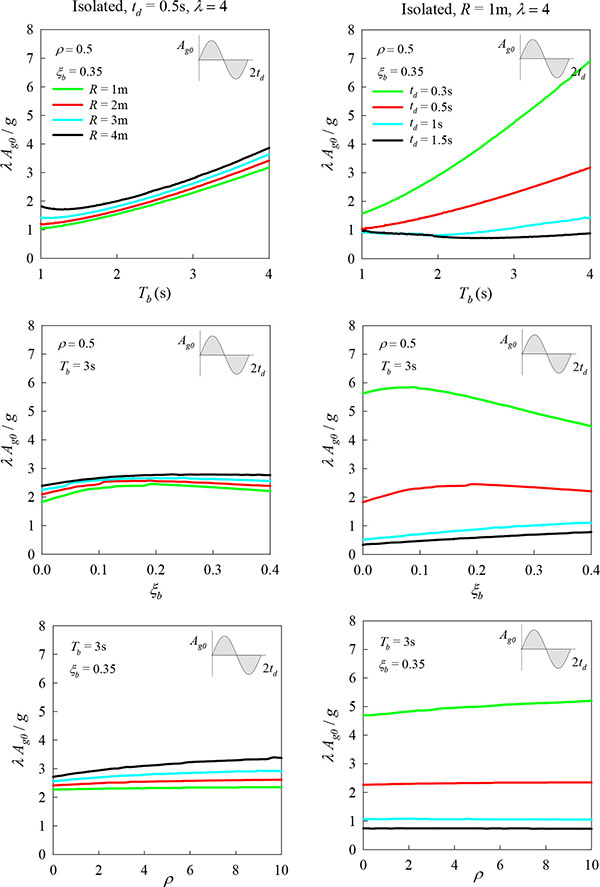

Fig. (5) illustrates the influence of isolation-system parameters (T_b, ξ_b) and mass ratio ρ = m/m_b on the stability of the isolated block, for different values of R (left) and for different values of t_d (right) for full-cycle sinusoidal pulse. As can be seen from Fig. (5), the most influential parameter on the block stability is the isolation-system period T_b. That is, the minimum overturning base acceleration increases with increasing isolation-system period, provided that the pulse duration does not exceed a certain value (roughly 1s). Observe also that the influence of each parameter on the stability is amplified as the pulse duration decreases.

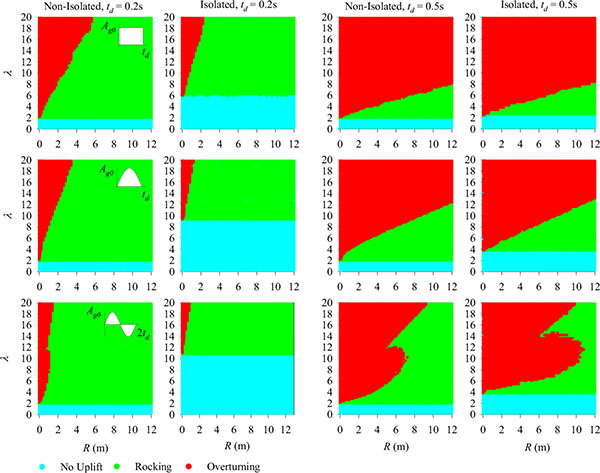

Fig. (6) presents response-regime spectra in the λ-R space for non-isolated and isolated blocks of varying geometric characteristics, for half- and full-cycle pulses with duration t_d = 0.2s and 0.5s. A linear isolation system is considered in these analyses with T_b = 3s and ξ_b = 0.35. These spectra depict in a clear way the distinct regimes of block response, with the cyan area indicating “No Uplift”, the green area “Rocking”, and the red area “Overturning” of the block. A total of 6,000 nonlinear dynamic analyses were performed in constructing each behavior map. Each dot in these maps represents the outcome of a single analysis. As illustrated in Fig. (6), the application of seismic isolation yields an increase in the acceleration required for the initiation of rocking. In addition, the spectra plotted in Fig. (6) elucidate a counterintuitive trend observed for bilateral excitations (not observed for unilateral excitations), in terms of the overturning potential of a given input-acceleration amplitude. That is to say, for a given block size R, overturning occurring for certain slenderness λ does not necessarily imply overturning of the block with increasing λ. In mathematical terms, this is equivalent to stating that the (stability) curve defining the boundary between rocking and overturning is not single-valued. By and large, the application of seismic isolation yields a better system performance, with respect to the initiation of rocking and overturning potential of the block, for short-period pulses. On the contrary, for long-period pulses, the use of isolation is not beneficial in improving the stability of the block. Nevertheless, the application of seismic isolation yields an increase in the acceleration required for the initiation of rocking, regardless of the pulse period.

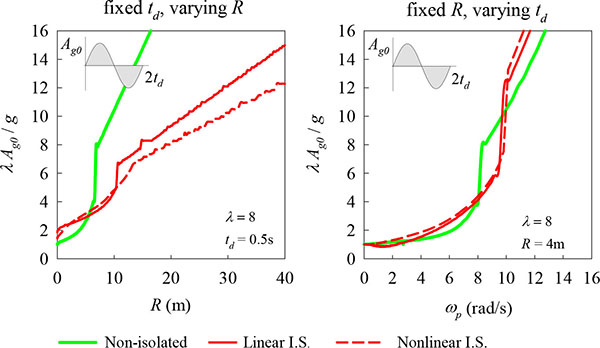

Fig. (7) compares the response of the block when isolated, considering a linear viscoelastic model with T_b = 3s and ξ_b = 0.35 and a bilinear hysteretic model (typified by friction-pendulum isolator) with parameters µ_b = 0.11 and R_b = 2.24m (corresponding to T_b = 3s). In particular, Fig. (7) plots the normalized minimum overturning base acceleration as a function of block size R (left), and as a function of the excitation frequency ω_p (right). As can be seen from this figure, the calculated response of the block is comparable for the two isolation-system models. This observation is in agreement with previously published results from analysis using as ground excitation acceleration pulses described by Ricker wavelets [17]. The small discrepancy observed for large R (> 10m), does not affect qualitatively the conclusions drawn above on the basis of a linear isolation model regarding the stability and the rocking incipient condition of the block.

3.2. Response to Earthquake Motions

A wide range of recorded pulse-type ground motions, in terms of amplitude and frequency content, were chosen as input in the analysis of the rocking response of the system. Table 1 lists the characteristics of the motions used for the dynamic analysis.

The stability of the isolated block is again examined in terms of the minimum amplitude of base acceleration required to overturn the block, by considering the influence of excitation characteristics, the geometric parameters of the block, the inertia parameters of the base/block system, and the constitutive parameters of the isolation system.

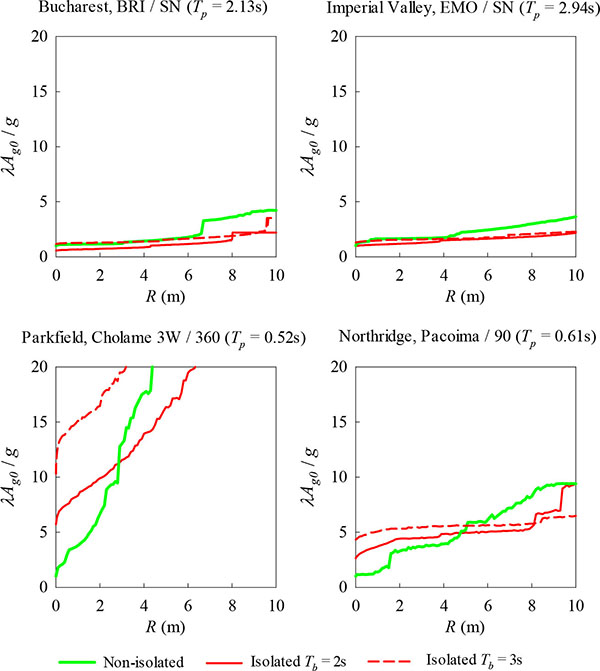

Representative results are shown in Fig. (8) for the SN-component of the BRI record from the 1977 Bucharest earthquake, and the SN-component of the EMO record from the 1977 Imperial Valley motion (with prevailing period T_p = 2.13s and T_p = 2.94s, respectively, based on Mavroeidis and Papageorgiou, [20]), as well as the 90-component of the Pacoima Dam record from the 1994 Northridge earthquake and the 360-component of the Cholame-3W record from the 2004 Parkfield event (with prevailing period T_p = 0.61s and T_p = 0.52s, respectively, based on Bray and Rodriguez-Marek, [21]). In particular, Fig. (8) plots the minimum ground acceleration needed to overturn the block as a function of block size R, for both the non-isolated and isolated case (with isolation-system period T_b= 2s and T_b = 3s). As indicated in this figure, for the short-period Parkfield, Cholame-3W record (with T_p = 0.52s), the isolation system has a positive effect on the stability of the block, provided that the isolation system is designed to have sufficiently large period (case of T_b = 3s). Note that, for the case of the intermediate-period Northridge, Pacoima-Dam record (with T_p = 0.61s), the effectiveness of isolation is conditional on the size of the block R, that is to say the isolation ceases to improve the stability of the block as the block size increases. On the contrary, for the long-period Bucharest, BRI record and Imperial Valley, EMO record (T_p > 2s), the application of seismic isolation does not prove beneficial in improving the stability of the block. It is worthy of noting that these response trends, with respect to the excitation period, are in line with the observed trends for the case of simple full-cycle acceleration pulses.

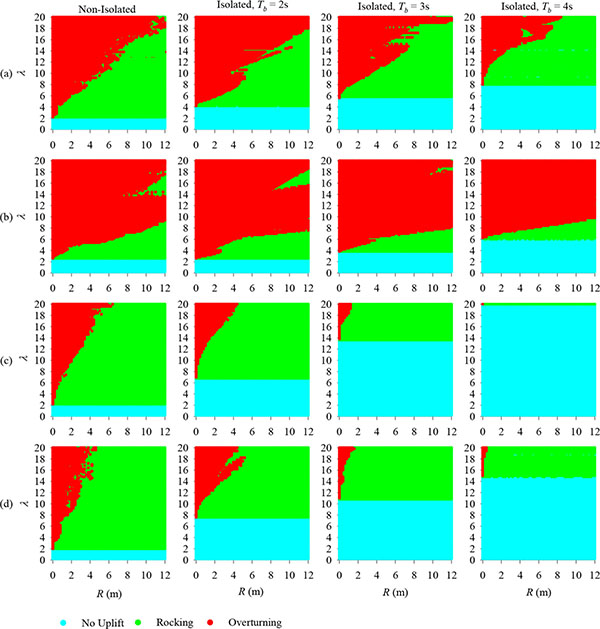

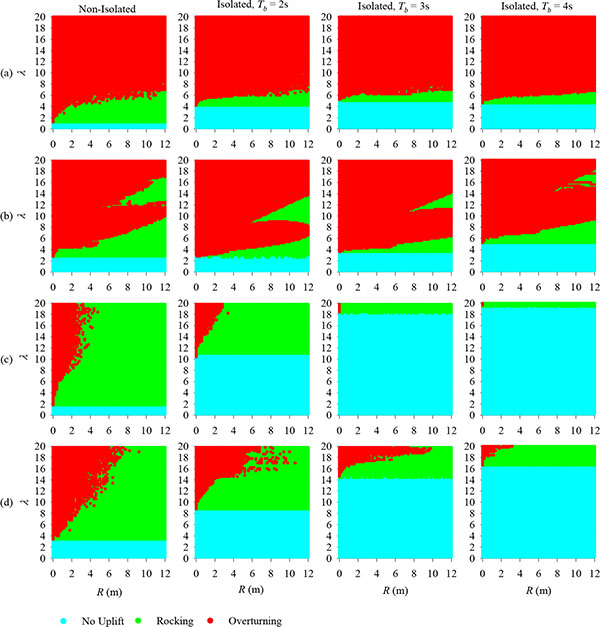

Figs. (9 and 10) depict response-regime spectra in the λ-R space for non-isolated and isolated blocks of varying geometric characteristics, for pulse-type earthquake motions with varying frequency content. These spectra suggest that, regardless of the excitation period, the use of isolation results in an increase in the acceleration required to initiate rocking, a benefit that increases as the isolation period increases. The effectiveness of isolation in increasing the stability of the block is evident in the case of the Parkfield, Cholame-3W record (T_p = 0.52s), the Aigion, AEG/Long record (with T_p = 0.71s), and the Aigion, AEG/Tran record (with T_p = 0.68s). This is also true for the case of the Northridge, Pacoima-Dam record (with T_p = 0.61s), with the exception of very slender blocks (large λ) where the effectiveness of isolation depends on the size of the block R. On the contrary, for the long-period Tabas, TAB record, Imperial Valley, EMO record, the Parkfield, C02 record and the Northridge, NWS record (with T_p > 2s), the presence of isolation is not beneficial with respect to the stability of the block. Similar observations have been made from analysis results with simple full-cycle acceleration pulses.

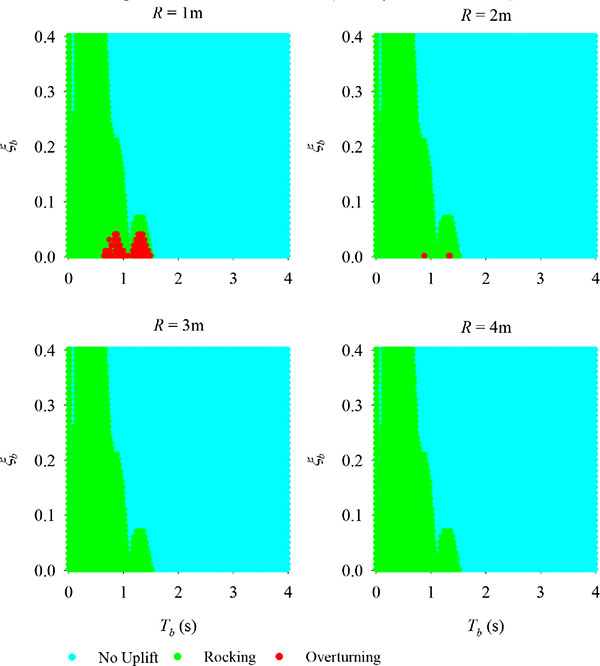

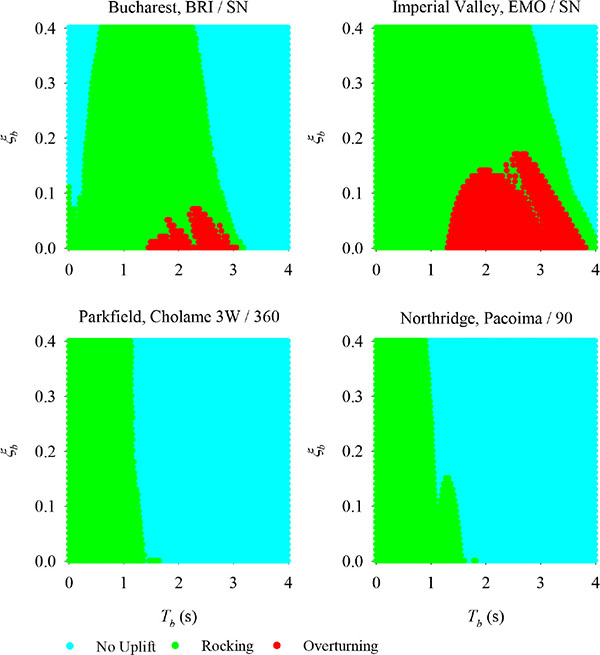

The effect of isolation-system parameters on the block behavior is illustrated in Fig. (10) through response-regime spectra in the T_b-ξ_b space for the considered earthquake records. These spectra specify the values of the constitutive parameters of the isolation system that provide improved performance of the analyzed block subjected to the specific pulse-type base excitations. As seen from Fig. (11), the range of (T_b, ξ_b) values corresponding to enhanced system performance is considerably larger for the case of short-period records. The effect of block size R is shown in the T_b-ξ_b spectra of Fig. (12) for the Northridge, Pacoima / 90 record for a given block slenderness λ. Observe that the boundary between no-uplift and rocking regimes (cyan and green areas, respectively) is invariant to the change of block size R, justifying that the initiation of rocking is not dependent on the absolute size of the block (but rather on the height-to-width ratio λ, as Eq. (1) suggests). Moreover, the unfavourable (red) region in the T_b-ξ_b space entailing overturning of the block is reduced as the block size R increases, a response trend also observed in the case of the simple acceleration pulses (Fig. (5 left)). Evidently, the damping ratio, ξ_b, has a significant influence on the effectiveness of isolation. In particular, the effectiveness of isolation is reduced as the damping ratio decreases.

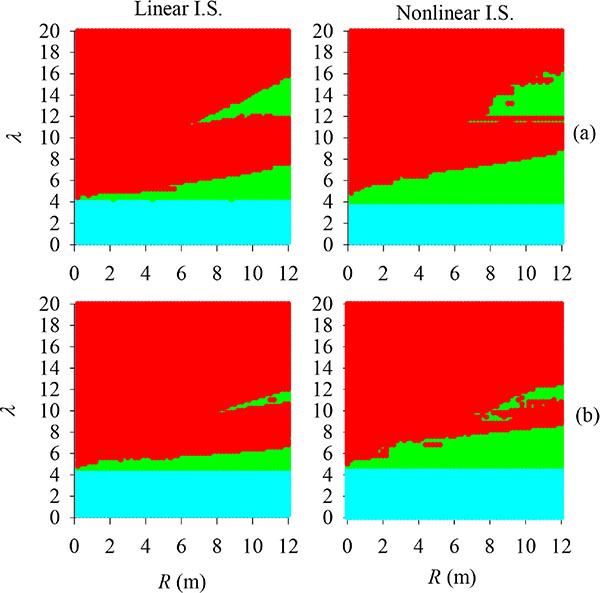

Fig. (13) depicts response-regime spectra in the λ -R space for a wide range of rigid blocks under recorded ground motions using a bilinear hysteretic model with parameters µ_b = 0.11 and R_b = 2.24s (corresponding to T_b = 3s), and a viscoelastic model with ξ_b = 0.35 and T_b = 3s. As shown in these figures, the calculated dynamic behavior for the two types of seismic isolation is comparable, with the initiation of rocking (boundary between cyan and green areas) not drastically affected.
